Automatic flat type bottle double side label sewing picture machine

FOB Reference Price:Get Latest Price
US $1,000-20,000 / Sets | 1 Set/Sets label sewing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Labeling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical, Textiles
Packaging Type:
Bottles
Packaging Material:
Glass, Metal, Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
1200W
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xiaoteng
Model Number:
XT-3510
Dimension(L*W*H):
2400X1400X1700(mm)
Weight:
300kg
Certification:
ISO9001, CE/ISO/SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Machine type:
label sewing machine
Delivery type:
ocean shipping
Labeling capacity:
40-200pcs/min
Labeling accuracy:
±1.0mm
Power supply:
AC220V 50Hz/60Hz 1200W
Label size:
L20-300mm H10-180mm
Material size:
H 40-300 W 20-200mm
Machine size:
2400X1400X1700(mm)
warranty:
One year
Supply Ability
Supply Ability:
20 Set/Sets per Month automatic label sewing machine
Packaging & Delivery
Packaging Details
Plasic packing inside and the wooden outerside ,or as customer's requirement for automatic double side label sewing machine.
Port
Shanghai
Lead Time :
within 3 days after order

Automatic flat type bottle double side label sewing picture machine



Product Description



 XT-3510

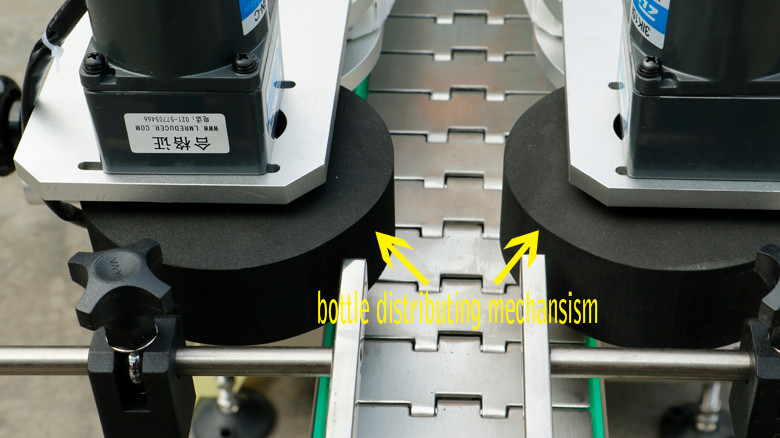

bottle distributing mechanism.jpg

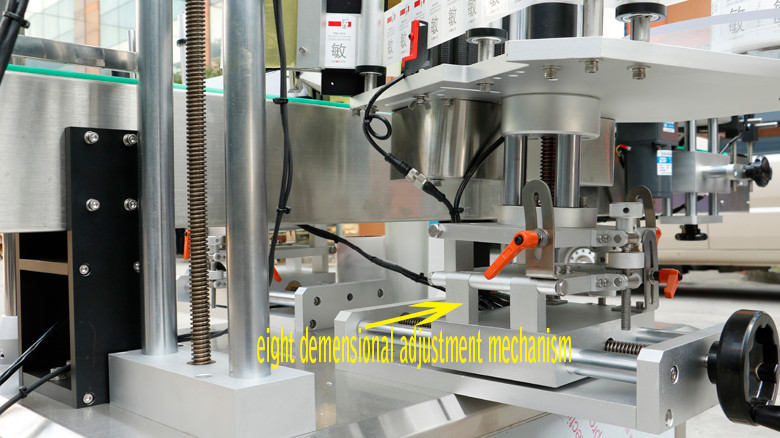

eight dimensional adjustment mechanism.jpg

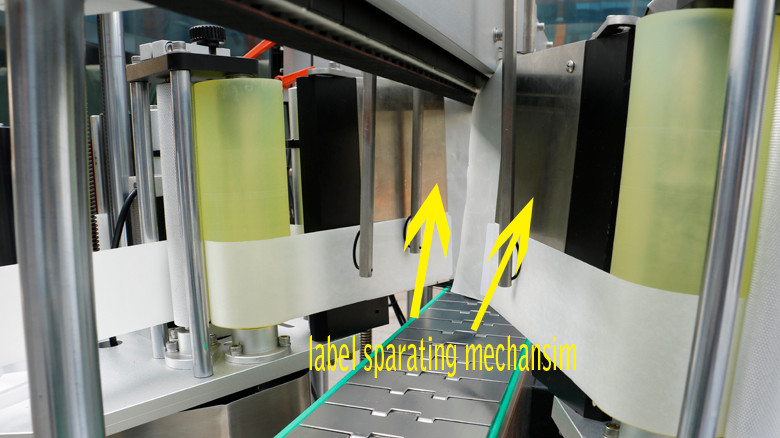

label sparating mechanism.jpg

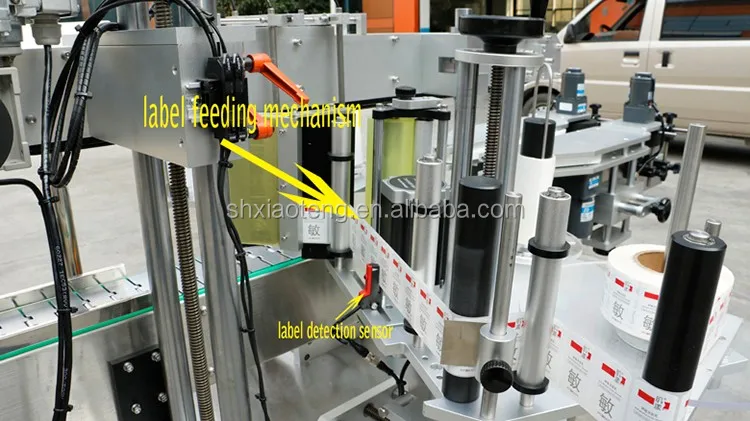

label feeding mechanism

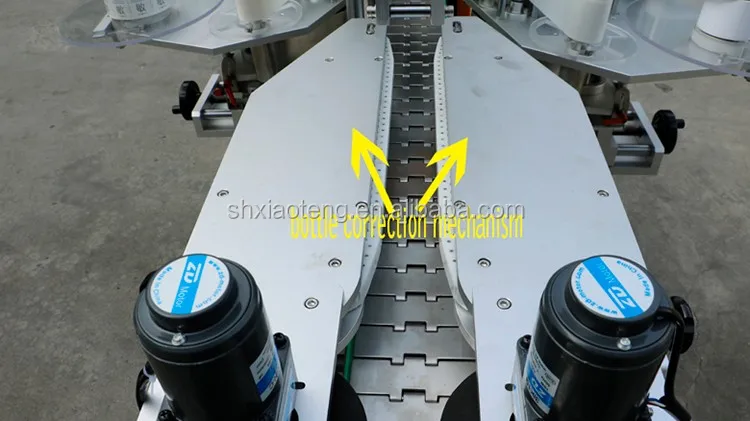

bottle correction  mechanism

Main performance features


1) Applicable to label whole curved surfaces or half curved surfaces on rotundities that can’t stand on their on their own fet with short diameter;nail polish labeling machine
2) Advanved touch human-compater interface which is easy and intuitionistic to operate and has complete functions including abundant online help;
3) The design of special tilting loading material method and conveying by idler wheel makes the objects to labe to be located automatically;nail polish labeling machine
4) Automatic photoelectric detection functions,such as cancelling labeling without objects there,stopping running or raising an alarm without labels to use to avoid omitting or wasting lables;
5) Simple and compact machine construction that is easy to operate and maintain;
6) Well-knowen motor drive is matched with the complete machine that ensures a stable and reliable label-feeding speed.

 nail polish labeling machine

Technical parameter:

Madel/Technical parameterXT-3510
Labeling speed(pcs/min)40-200(pcs/min)(relate to material and label size)
Labeling accuracy(mm)±1.0mm(material and label sizes are not counted in)
Labeling size(mm)(L)20-3000mm (H)10-180mm
Material size(mm)(L)20-200mm (W)40-180mm (H)40-300mm
Rolling inside diameter(mm)diameter 76mm
Rolling outerside diameter(mm)Max diameter 350mm
Machine size(mm)(L)2000*(W)1700*(H)1500mm
Power supplyAC220V 50Hz 3000W



Company Information

filling capping and labeling machine



Shanghai Xiaoteng Mechanical & Electrical Equipment Co.,Ltd,which is a professional
packing machinery producer produce,sale and service for filling machine,caooing machine,labeling machine,outer packing machinery and complete packing solution etc.Our product export to Europe,South-east Asia,Middle East,North Africa and North America.
In past years,Shanghai Xiaoteng devote as industrial bench marking enterprise.Then our company advocates”Technology is Forerunner,Quality is soul,Customer interests is
criterion”tenet,introduce foreign advanced technology developed a series of middle and
 high-end equipment.
Our company will be adhering to consistent”honest”,”sincere”attitude and”development”,enterprising”spirit,provide customer first-class product,honest redible,generally pragmatic service system,pay attention to brand building,aim at”integrity service,steady and progressive”as the enterprise tireless pursuit and goal for a long time.

labeling and filling packing machine



Our Services

 nail polish labeling machine

After-sale service:

We provide you with one year warranty and life long after-sale service, we guarantee the main parts
within 12 months, if the main parts go wrong without human contact within one year, we will freely provide
 with you. And after one year, if you need to change parts, we will provide with you with best price and
main it in your site. Whenever and wherever you have technical problems, you can contact us at any time,
 we will do our best to support you to solve the problems.

Quality guarantee:
nail polish labeling machine
We are the manufacturer of the machine, as a manufacturer, we guarantee the machine are made of
the best materials, with first-class workmanship, brand new, unused and in all respects with the quality,
 specification and performance are stipulated in the contract.

Quality warranty period is within 12 months from B/L date. The manufacturer would repair the
contracted machines free of charge during the quality guarantee period . If the breakdown is due
 to the improper use or other reasons, the manufacturer will collect the repair fee.

Installation and debugging:

 After the machine arrives at the buyer's factory, if the buyer want us to install and commission the
machine in buyer's factory, we will dispatch one engineer to your site to install and commission the
 machine to you, but the related fees: round trip tickets, local accomodation, food, transportation will
 be borne by the buyer, and the buyer should provide his site site assistance for the installation
and commission.
Exhibition shows

 nail polish labeling machine

                                                                2016 international exhibition show





Packaging & Shipping

labeling machine4



labeling machine



FAQ

 nail polish labeling machine





1. Are you the factory?

Yes. Our company engaged in packing machinery for ten years.

2. Can you do customized packing machine?

Yes,of course. We are specific packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery accourding to the customer's requirements.

3. I there any installation direction after we received the machine?

Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

4. Is there any ensurance to guarantee my order from your company?

We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.

 nail polish labeling machine

If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply.

 filling and labeling machine
