Custom Servo Motor & Piston Control Liquid Filling and Capping Machine

FOB Reference Price:Get Latest Price
US $1,000-8,000 / Sets | 1 Set/Sets 1 set If you buy more we will give you a discount (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
1.5kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
xiaoteng
Model Number:
XT-618
Dimension(L*W*H):
2440*1350*1730mm
Weight:
700kg
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
316L+304 Stainless Steel
Output:
80-120pcs/minute
Applied product:
20-500ml
Precent of pass:
>=99.5%
Advantage:
can be customized
Warranty:
One Year
Supply Ability
Supply Ability:
50 Set/Sets per Month Liquid Bottle Filling and Capping Machine 20-500ml 80-200b/min
Packaging & Delivery
Packaging Details
Exporting standard long distance wooden case
Port
any ports of China
Lead Time :
10 days after receiving your down payment

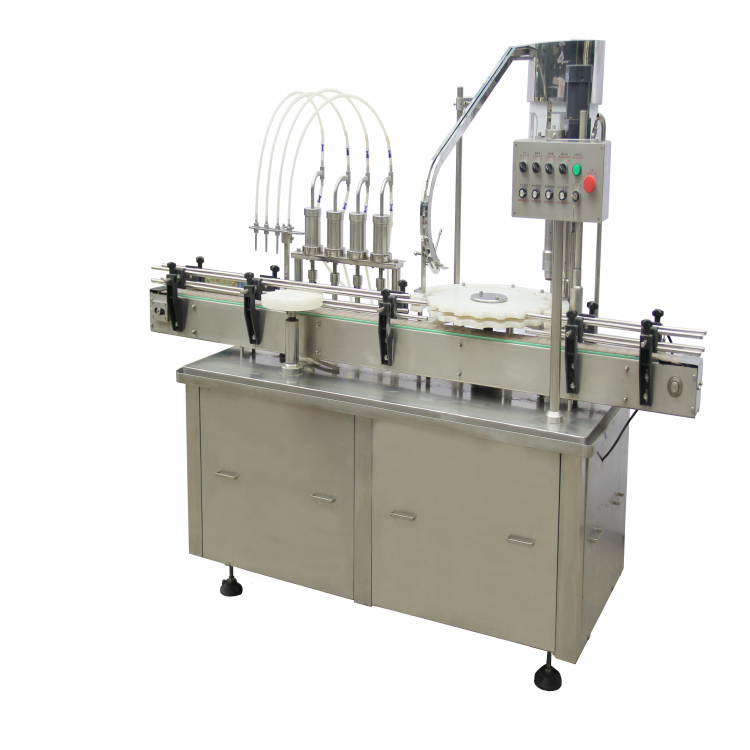

XT-618 SERIES OF LIQUID PLUG-PUTTING AND FILLING MACHINE

Product Description

 XT-618

Purpose and performance:

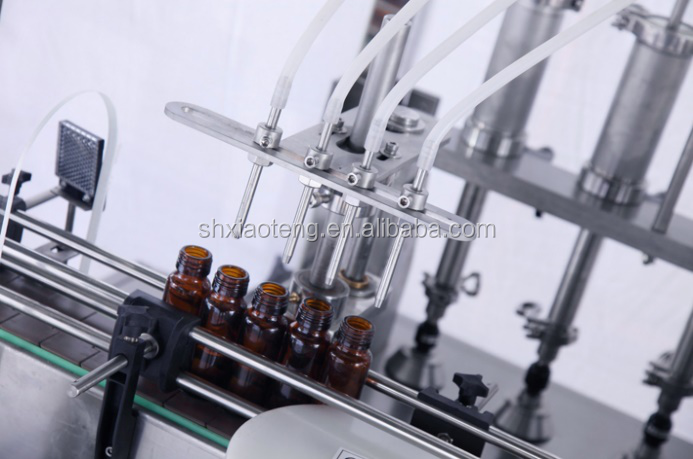

This machine is mainly applicable to filling/capping operation for 20-500ml plastic or glass bottles,10 pumps are used for double-headed filing/capping.In order to increase corresponding output, stainless steel pumps can be added. This machine structure allows filling production for high-capacity liquid like large infusion,syrup etc,This machine has simple structure,is convenient in maintenance and easy for operation.It is advised to choose corresponding electric configuration and dust cover .



Main features and performance:



1.Bottle feeding, filling and plug putting are on dual rails; linear bottle feeding; liquid level filled can be tracked and controlled by stainless steel valve to ensure there is no adherent liquid and dropping liquid; detect with optical fiber; plug putting by cylinder; stop putting inner plug with no bottles there; percent of pass of putting plug is high.



2.Good safety barrier propterty; Convenient to operate, adopting selective touch screen to operate.



3.Widely used for the volume production of infusion solutions in bigger bottles and large capacity vaccine.



Specification:

Scope

20-500ml(can be customized)

Output

80-120B/M  ( Depending on the bottle specifications)

Weight

700KG

Power

220V   50HZ   1.5KW

Over Dimension

2440mm×1350mm×1730mm
