Automatic pill capsule, nespresso capsule filling machine

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets Automatic pill capsule, nespresso capsule filling machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
10000granules/min
Control Mode:
Full Automatic
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xiaoteng
Model Number:
XT-SJC216
Dimension(L*W*H):
1980*1580*1740mm
Weight:
800kg
Certification:
CE
Warranty:
2
After-sales Service Provided:
Engineers available to service machinery overseas
Filling machine:
Automatic pill capsule, nespresso capsule filling machine
steady speed:
10000granules/min
filling volume of single bottle:
1-1000grain
drug specfications:
t:3-10mm dia:3-13mm l:3-21mm
bottle specfications:
DIA:20~100 mm H:40~240 mm
Power supply:
Power supply AC220V 50/60HZ
Power:
3.2KW
Air pressure:
0.5~0.7Mpa
Air consumption:
200L/min (clean air)
Boundary dimension(L*W*H):
1980*1580mm*1740mm
Supply Ability
Supply Ability:
20 Set/Sets per Month Automatic pill capsule, nespresso capsule filling machine
Packaging & Delivery
Packaging Details
wooden case for Automatic pill capsule, nespresso capsule filling machine
Port
shanghai
Lead Time :
with in 30 working day
Product Description

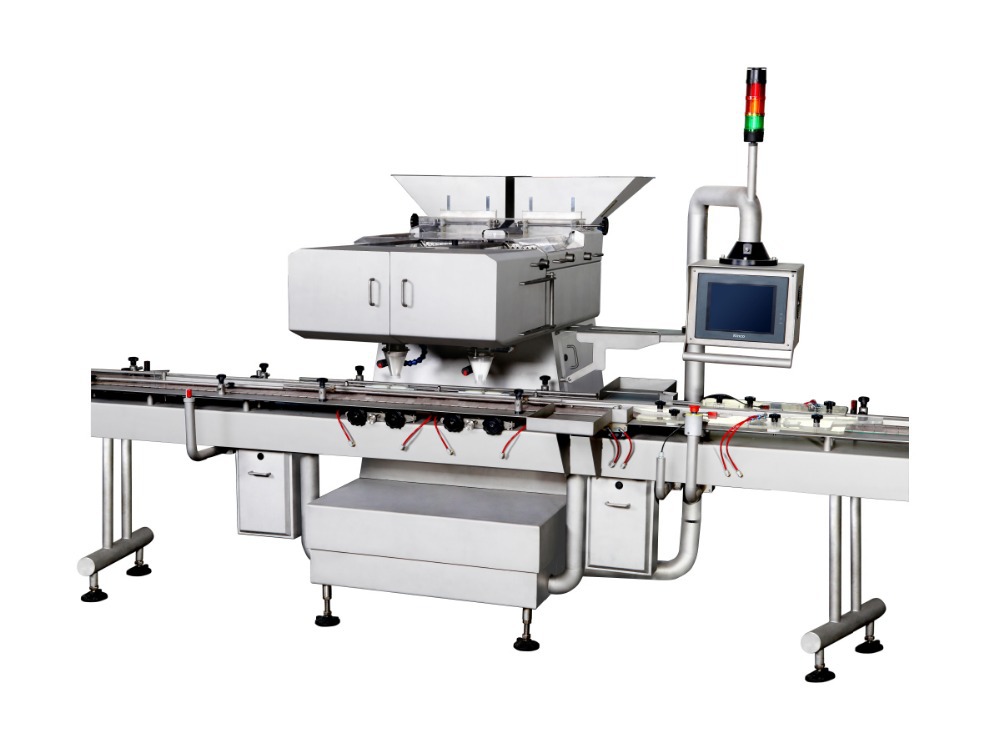

Automatic pill capsule, nespresso capsule filling machine








Working principle:

Pure Granules into top hopper, adjust primary, intermediate or last stage vibration feeder, then medicine granules in hopper drop into material-dropping mouth continuously in line along vibration trough slab. Granules drop into checking passageway one by one, infrared ray dynamic scanning transducer will catch signals about granules and put them into FPGA high-speed microprocessor, counting will be finished with the cooperation of electric circuit and programme



Technology parameters:

Items

Specific parameters

Note

Steady speed

10,000 granules/min

Bottle-filling speed relates

to medicine and packaging material

Filling volume of single bottle

1~1000 grain



Drug specifications

T:3~10mm  DIA:3~13mm  L:3~21mm

 (Pills, tablets, hard and soft capsules and other solid )

Bottle specifications

DIA:20~100 mm  H:40~240 mm



Power supply

AC220V 50/60HZ



Power

3.2KW



Air pressure

0.5~0.7Mpa



Air consumption

200L/min

200L/min (clean air)



Boundary dimension(L×W×H)

1980mm(L)×1580mm(W)×1740mm(H 1740mm(H)



Weight

800kg(About 800 kg)







Packaging & Shipping

 QQ20150708135339







Our Services



We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
