dry powder automatic filling machine and packing line for extinguisher

FOB Reference Price:Get Latest Price
US $800-45,000 / Sets | 1 Set/Sets dry powder filling machine for extinguisher (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, plastic bottle and glass bottle
Packaging Type:
Bags, Barrel, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V, 220V
Power:
2000W, 50Hz/60Hz 220v/380v
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xiaoteng
Model Number:
XT-2LB
Dimension(L*W*H):
1680MM*1000MM*1750MM
Weight:
500KG
Certification:
IOS9001 CE
After-sales Service Provided:
Engineers available to service machinery overseas
name:
dry powder filling machine for extinguisher
out put:
15-60b/min
packaging accuracy:
05-2%
total power:
1500W for single and 2000W for double head
Price:
send me quotation please :)
type:
automatic
material:
304 stainless steel
Supply Ability
Supply Ability:
30 Kilogram/Kilograms per Month dry powder filling machine for extinguisher
Packaging & Delivery
Packaging Details
wooden case for dry powder filling machine for extinguisher
Port
shanghai sea port
Lead Time :
30 days after receiving deposit
Product Description

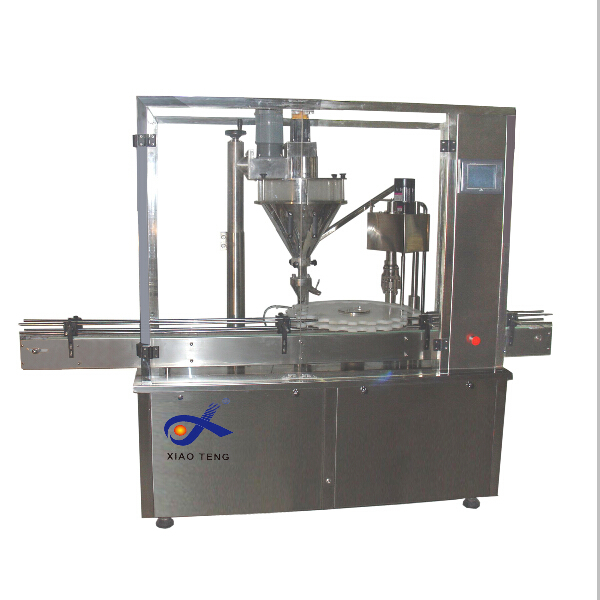

 XT-2LB    dry powder filling machine for extinguisher

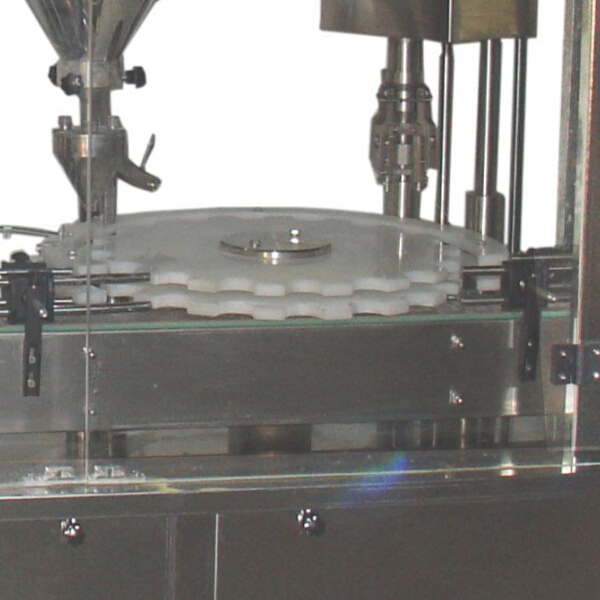

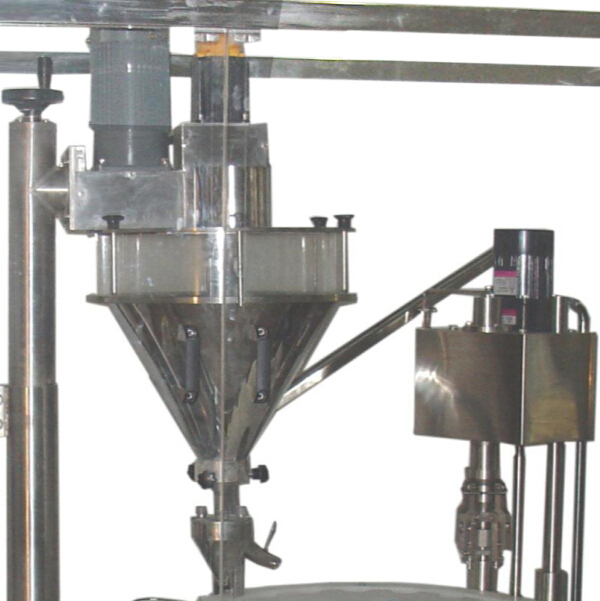

This all-in-one machine researched and developed on request of oversea customers integrates powder-filling and cap-putting functions. It can perform filling, cap-puttingand cap-pressing (cap - screwing) functions. It has compact structure and is easy to operate.

This machine is appropriate to fill bottles, tins and boxes with powder and fine granule product, such as milk powder, albumen powder, coffee, glucose, solid medicine, talcum powder, dyestuff, flavours and fragrances.



Main performance and features:



1,The whole machine adopts servo,index plate positioning system,touch pannel,so it increases the packing  precision and speed.We can design it to be single head or double head according to the packing requirements of the clients.

2,The whole machine is designed appropriately.It is convenient for changing different kinds of packing products and cleaning.
3,Adopting touch pannel.Working condition ,operation instructions can be seen in both Chinese and  English.Simply and intuition.Packing weight can be adjusted,operation manner can be transformed arbitrarily.It will give an alarm when meeting malfunction.

4,Controlling part adopts PLC.Anti-interference ,working smoothly.
5,Filling adopts servo drive ,accurate,high precision,long operating life,Its speed can be set.Stiring adopts Taiwan mantenance-free motor.

6,Replace screw attachments,it is suitable for the packing of products from fine particle to ultrafine powder materials.We can add aspiration and vibration devices according to different kinds of materials.
7
,Various products formulation parameters can be stored, can be called up anytime
8
,The model is made in according with national GMP,QS health certification requirements.



 Technology parameters:

Type

XT-2LB

Form of measurement

screw rotation filling

Filling weight

3-500g (with replacing screw accessories)

Packaging speed

15-30 bottles/ min. (single-nozzle)

20-60 bottles/ min. (double-nozzle)

Packaging accuracy

0.5-2%

Power supply

220V 50HZ

Total power

1.5KW(single-nozzle)/2.0 KW(double-nozzle)

Boundary dimension

1680*1000*1750mm



Packaging & Shipping

 1 004





1 005





Our Services



We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.



Company Information

 -3333

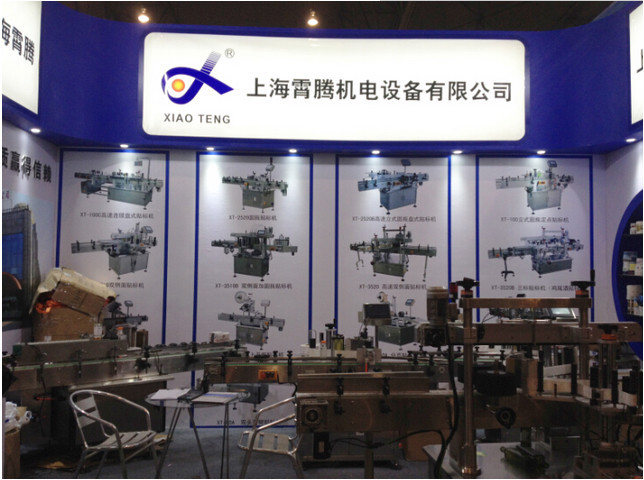

Exihibition show:



 QQ20150708135250



QQ20150708135320

FAQ



If you have any question please don't hesitate to contact us, we will give you a warm and rapid reply :)
